SPECIFICATION
|
Model |
GJ-III Freefall |
||||
|
Tube Diameter(mm) |
Φ70 |
Φ100 |
Φ125 |
Φ150 |
Φ200 |
|
Sensitivity for Fe(Φmm) |
0.7 |
0.8 |
1.0 |
1.2 |
1.5 |
|
Sensitivity for Non-Fe(Φmm) |
1.2 |
1.3 |
1.8 |
2.3 |
2.8 |
|
Sensitivity for Sus(Φmm) |
1.3 |
1.5 |
2.0 |
2.5 |
3.0 |
|
Control Panel |
LCD Screen and Button Control |
||||
|
Menu Language |
English |
||||
|
Parameter Setting |
Normal Auto-Learn Function |
||||
|
Product Storage Quantity |
50 Products |
||||
|
Construction Material |
Stainless Steel 304, inner tube is food grade PP material |
||||
|
Power Supply |
AC110~220V±10%, single phase, 50/60 Hz |
||||
|
Working Temperature |
-10 ℃ ~40℃ |
||||
|
Detection Speed |
Gravity Speed |
||||
|
Alarm Pattern |
Automatic Valve Reject System |
||||
|
Air Requirement |
0.3~0.6Mpa |
||||
|
Note: |
|||||
FEATURES
? Specially used for powder/granule/bulks kind product
? Different tube diameters to choose: Φ70/100/125/150/200mm
? Equipped with automatic rejection system, unqualified products will be rejected out automatically
? Can leave alarm signal to connect with other equipment for alarm action
DIMENSION DRAWING

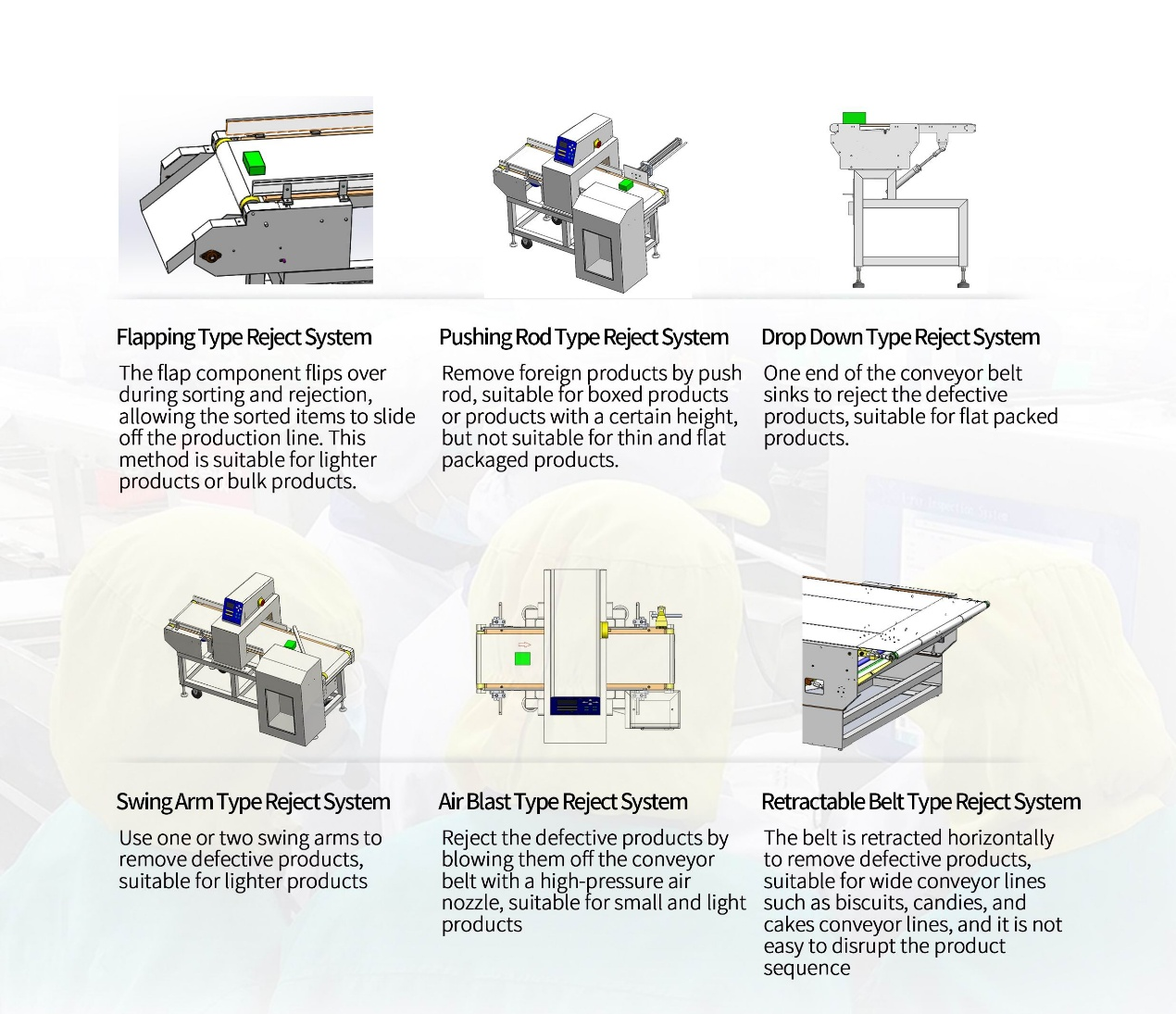

DIFFERENT TYPES OF REJECT SYSTEM

DIFFERENT LEVEL PRODUCTS AVAILABLE

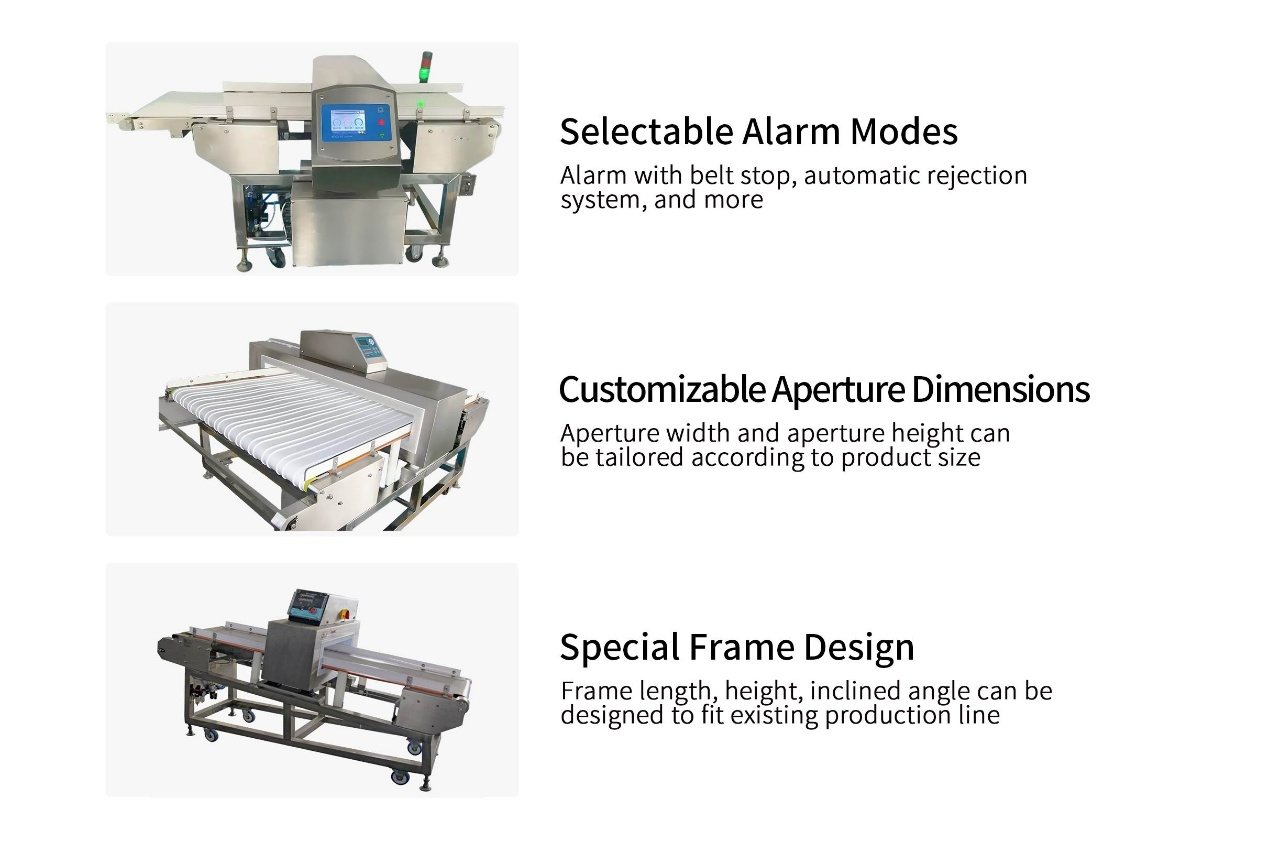

DIVERSIFIED CUSTOMIZATION AVAILABLE

Suitable for detecting metal foreign objects in various powdered, granular, and bulk materials.
