Model

4010

4012

4015

4020

5015

5020

5025

5030

Aperture Passing Width(mm)

400

500

Aperture Passing Height(mm)

100

120

150

200

150

200

250

300

Belt Width(mm)

370

470

Sensitivity for Fe(Φmm)

≥0.7

≥0.8

≥1.0

≥1.2

≥1.0

≥1.2

≥1.5

≥2.0

Sensitivity for Non-Fe(Φmm)

≥1.2

≥1.3

≥1.7

≥2.2

≥1.7

≥2.2

≥2.7

≥3.2

Sensitivity for Sus(Φmm)

≥1.3

≥1.5

≥2.0

≥2.5

≥2.0

≥2.5

≥3.0

≥3.5

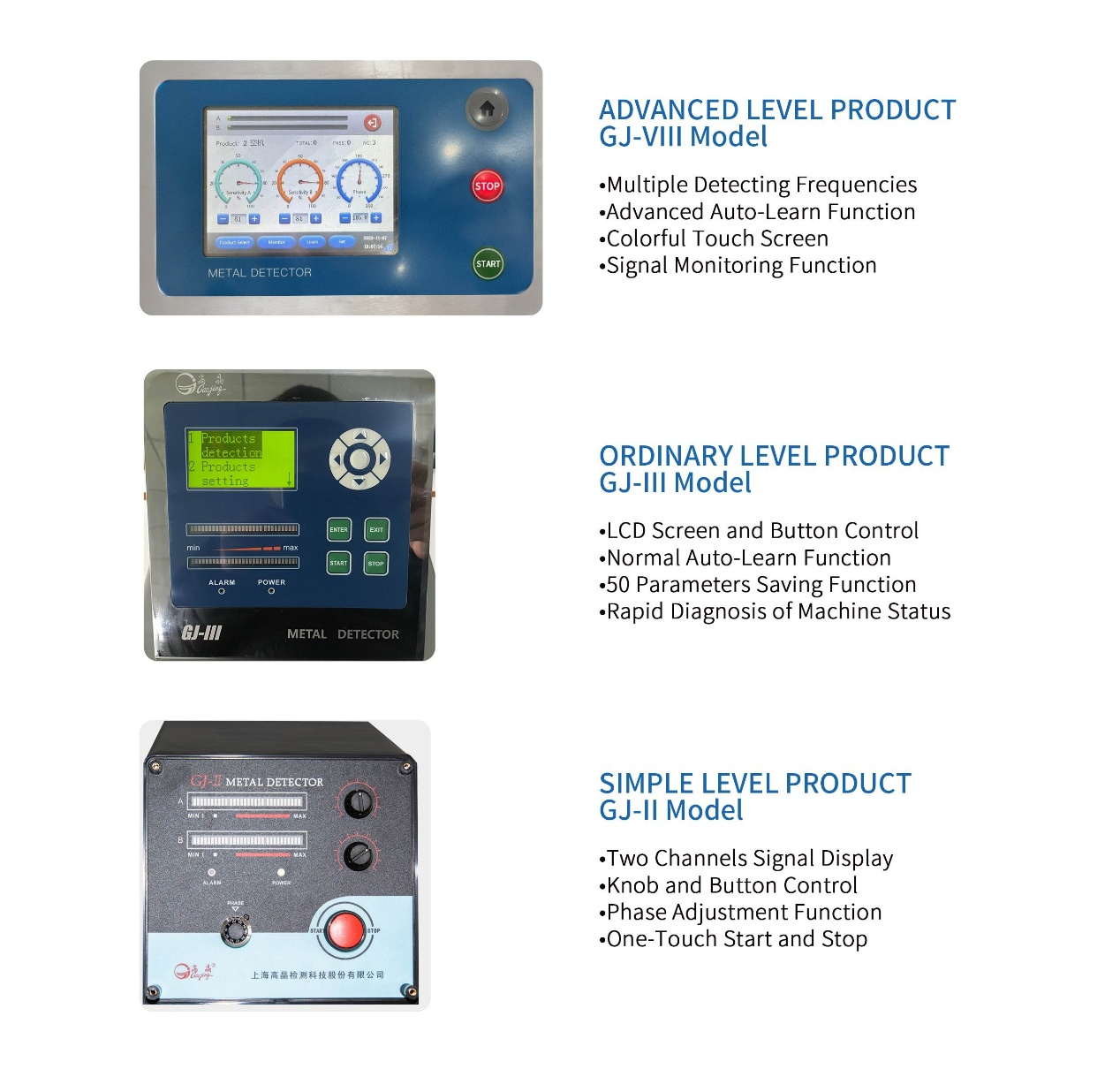

Control Panel

5.6 inch Colorful Touch Screen

Menu Language

English, Chinese, can customize other language

Parameter Setting

Advanced Auto-Learn Function

Product Storage Quantity

100 Products

Password Function

Multi-level Password Protection

Construction Material

Stainless Steel 304

Belt Type

Food Grade Belt

Power Supply

AC110～220V±10%, single phase, 50/60 Hz

Working Temperature

 -10 ℃ ～40℃

Conveyor Speed

Standard: 28 Meters/Minute
Optional: Adjustable Speed(extra charge)

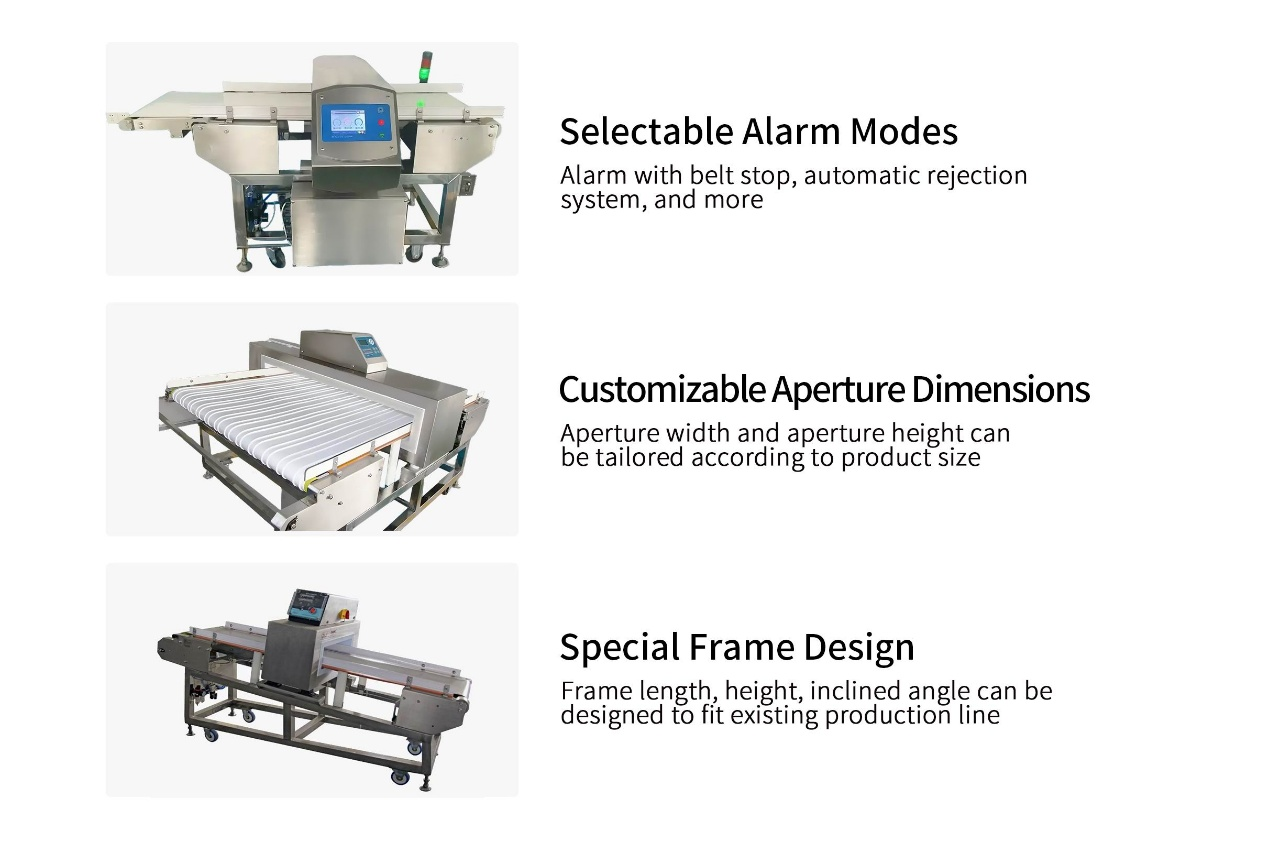

Alarm Pattern

Standard: Alarm Buzzer and Belt Stop

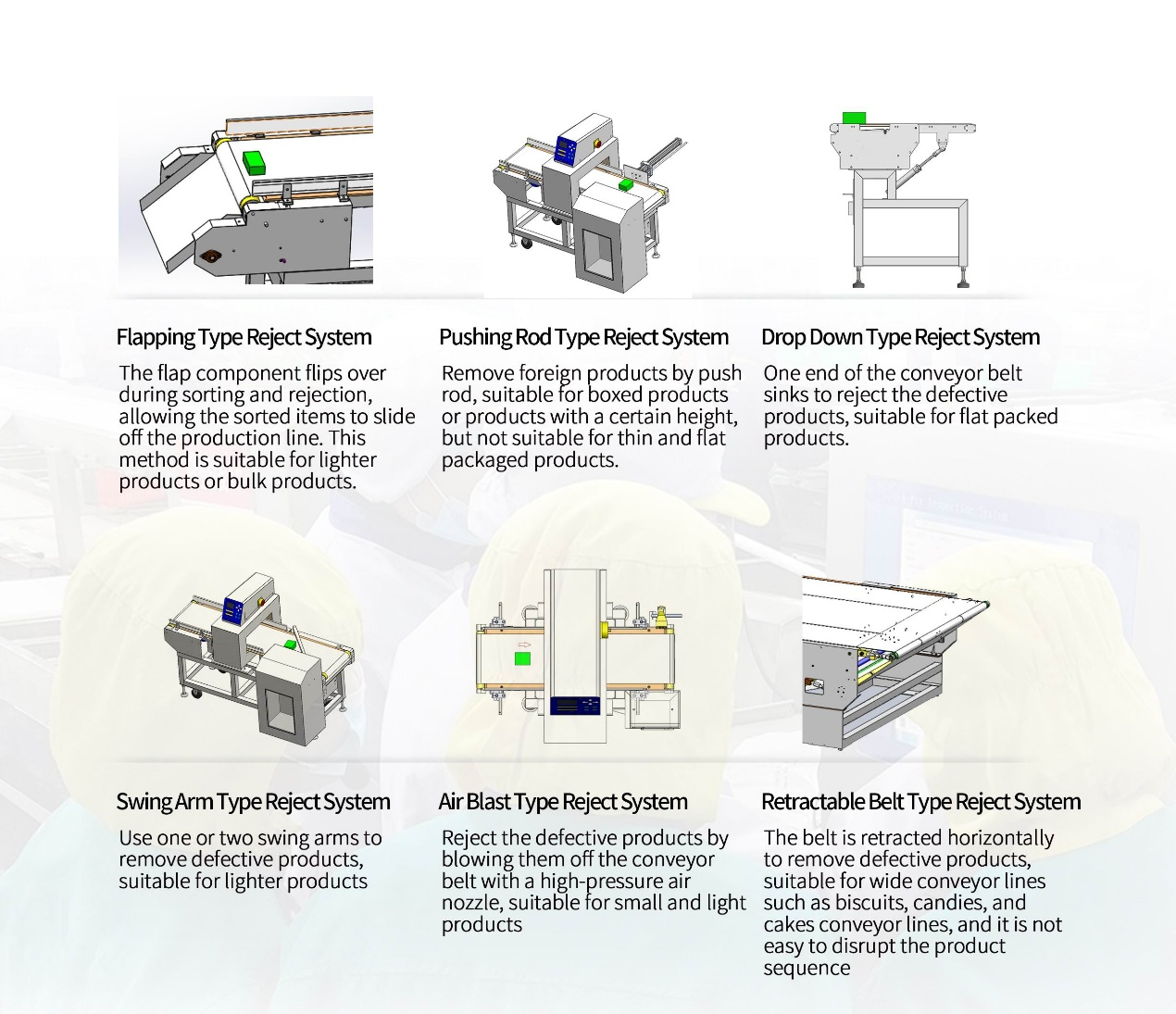

   Optional: Reject System(extra charge)

Note:
1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc.

2.Other special aperture size can be customized with extra charge

FEATURES

? Multiple Detecting Frequencies

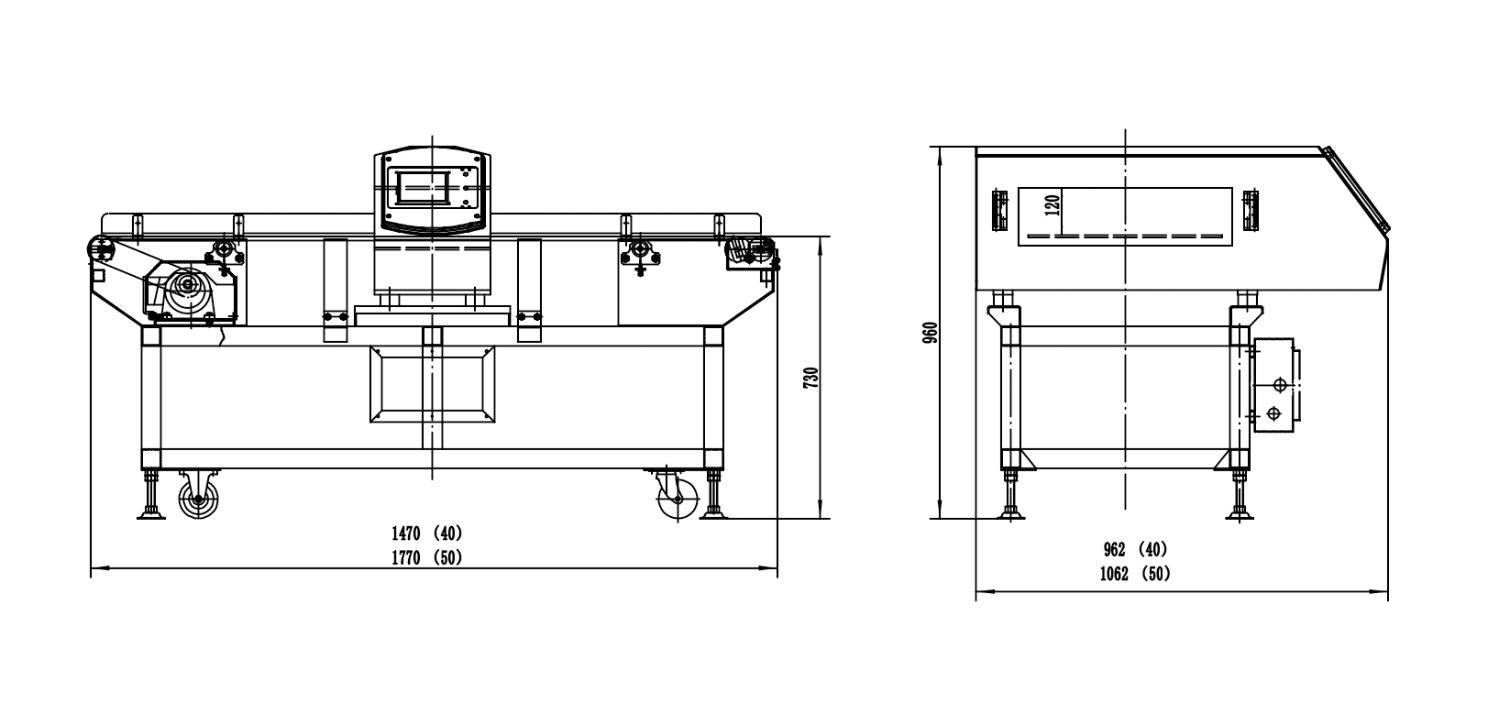

DIMENSION DRAWING
