SPECIFICATION
|
Model |
4010 |
4012 |
4015 |
4020 |
5015 |
5020 |
5025 |
5030 |
|
Aperture Passing Width(mm) |
400 |
500 |
||||||
|
Aperture Passing Height(mm) |
100 |
120 |
150 |
200 |
150 |
200 |
250 |
300 |
|
Belt Width(mm) |
370 |
470 |
||||||
|
Sensitivity for Fe(Φmm) |
≥0.7 |
≥0.8 |
≥1.0 |
≥1.2 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
|
Sensitivity for Non-Fe(Φmm) |
≥1.2 |
≥1.3 |
≥1.7 |
≥2.2 |
≥1.7 |
≥2.2 |
≥2.7 |
≥3.2 |
|
Sensitivity for Sus(Φmm) |
≥1.3 |
≥1.5 |
≥2.0 |
≥2.5 |
≥2.0 |
≥2.5 |
≥3.0 |
≥3.5 |
|
Control Panel |
LCD Screen and Button Control |
|||||||
|
Menu Language |
English |
|||||||
|
Parameter Setting |
Normal Auto-Learn Function |
|||||||
|
Product Storage Quantity |
50 Products |
|||||||
|
Construction Material |
Stainless Steel 304 |
|||||||
|
Belt Type |
Food Grade Belt |
|||||||
|
Power Supply |
AC110~220V±10%, single phase, 50/60 Hz |
|||||||
|
Working Temperature |
-10 ℃ ~40℃ |
|||||||
|
Conveyor Speed |
Standard: 28 Meters/Minute |
|||||||
|
Alarm Pattern |
Standard: Alarm Buzzer and Belt Stop |
|||||||
|
Note: |
||||||||
FEATURES
? Compact Frame Design for Limited Space
? LCD Screen and Button Control
? Normal Auto-Learn Function
? 50 Parameters Saving Function
? Rapid Diagnosis of Machine Status

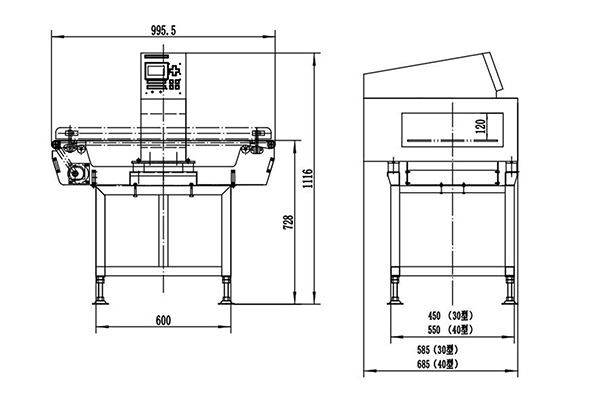

DIMENSION DRAWING


DIFFERENT LEVEL PRODUCTS AVAILABLE

DIVERSIFIED CUSTOMIZATION AVAILABLE
