SPECIFICATION
|
Model |
GJ-IV Ferromagnetic |
|||||||
|
Aperture Size |
3010 |
3012 |
3015 |
3018 |
4510 |
4512 |
4515 |
4518 |
|
Aperture Passing Width(mm) |
300 |
450 |
||||||
|
Aperture Passing Height(mm) |
100 |
120 |
150 |
180 |
100 |
120 |
150 |
180 |
|
Sensitivity for Fe(Φmm) |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
|
Control Panel |
Button Control |
|||||||
|
Construction Material |
Stainless Steel 304 |
|||||||
|
Belt Type |
Food Grade Belt |
|||||||
|
Power Supply |
AC110～220V±10%, single phase, 50/60 Hz |
|||||||
|
Working Temperature |
-10 ℃ ～40℃ |
|||||||
|
Conveyor Speed |
Standard: 28 Meters/Minute |
|||||||
|
Alarm Pattern |
Standard: Alarm Buzzer and Belt Stop |
|||||||
Note:
1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc.
2.Other special aperture size can be customized with extra charge
FEATURES
? Specially used for metalized packaged products, such as normal aluminum foil package and aluminum film package

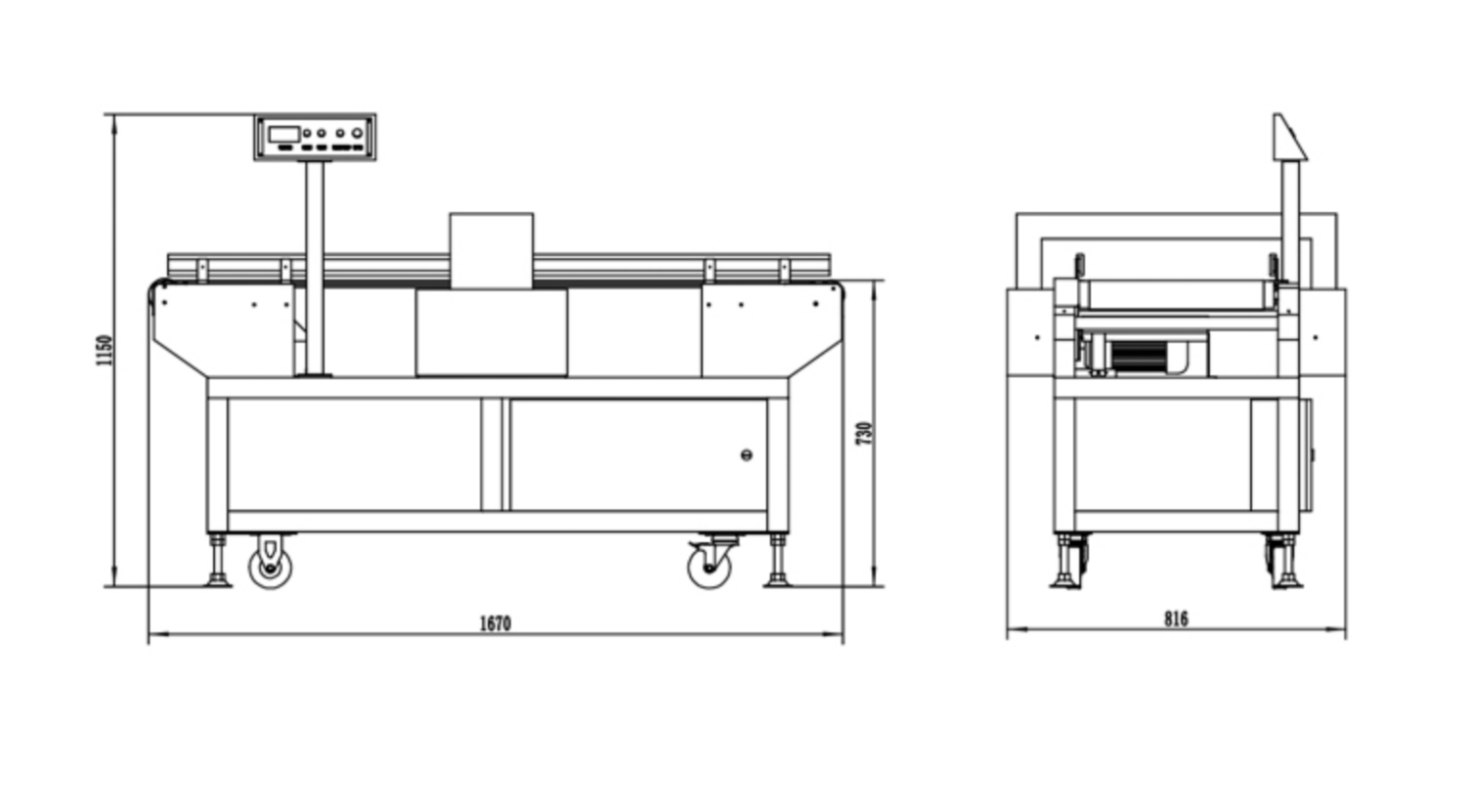

DIMENSION DRAWING

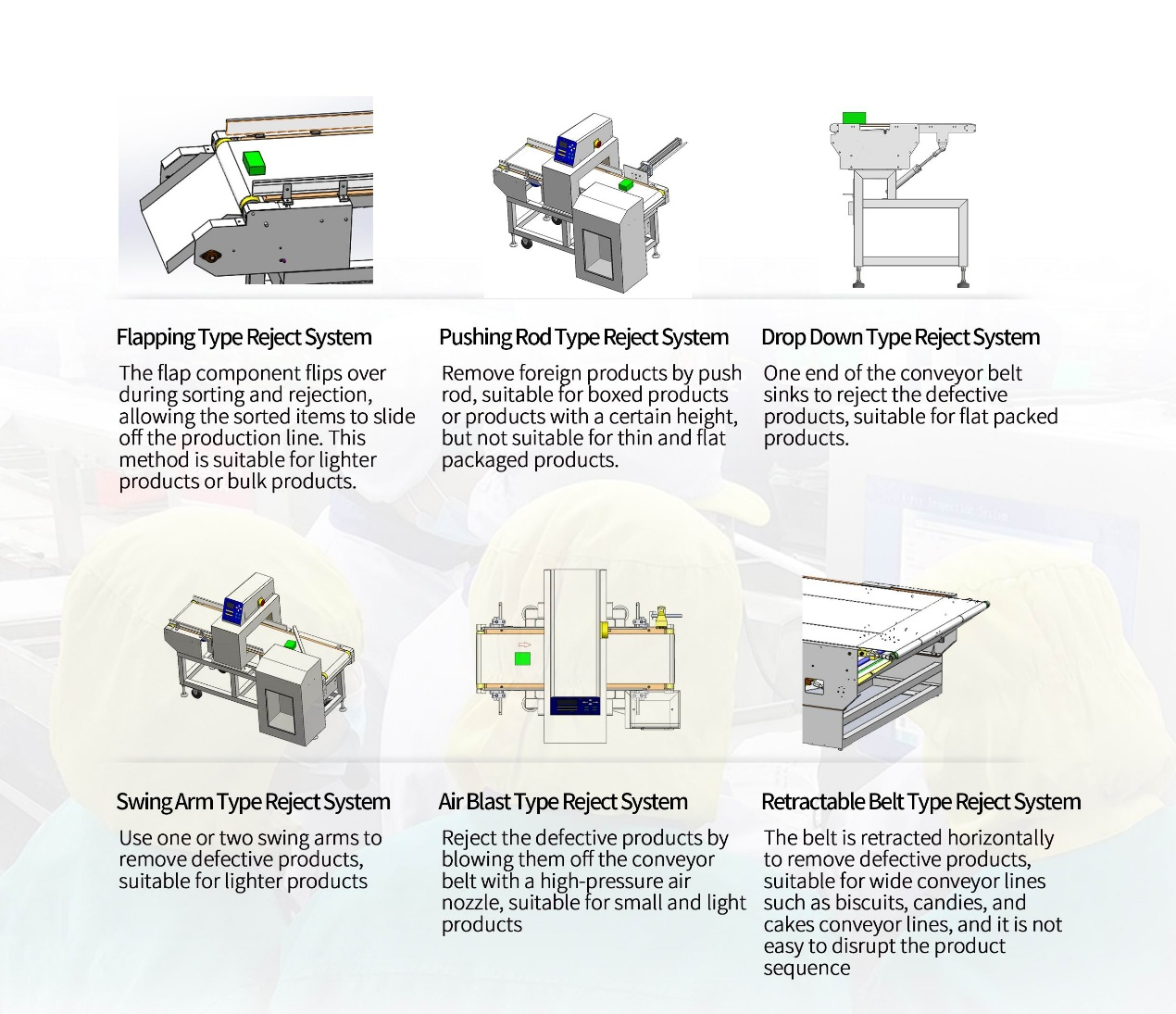

DIFFERENT TYPES OF REJECT SYSTEM

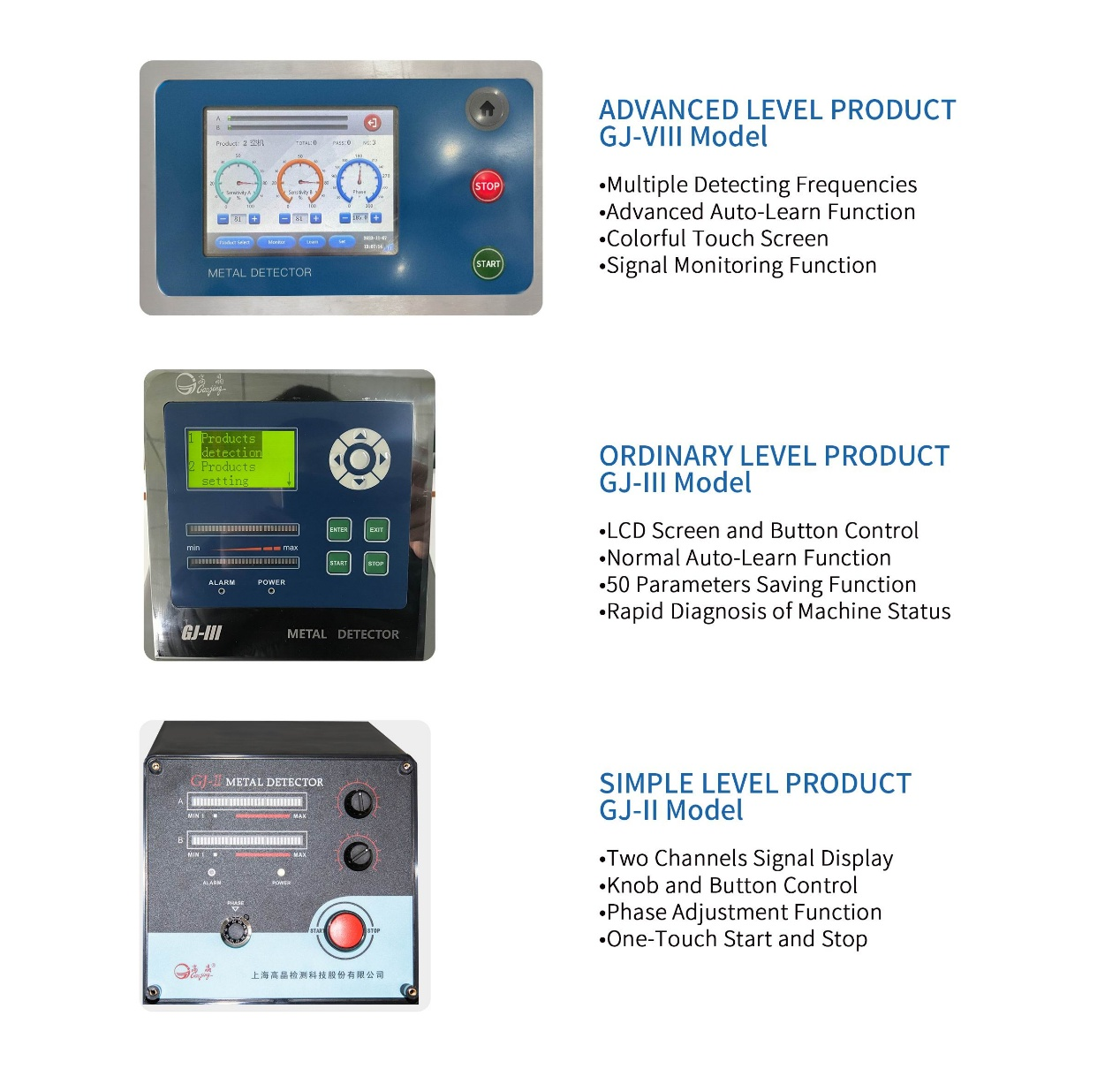

DIFFERENT LEVEL PRODUCTS AVAILABLE

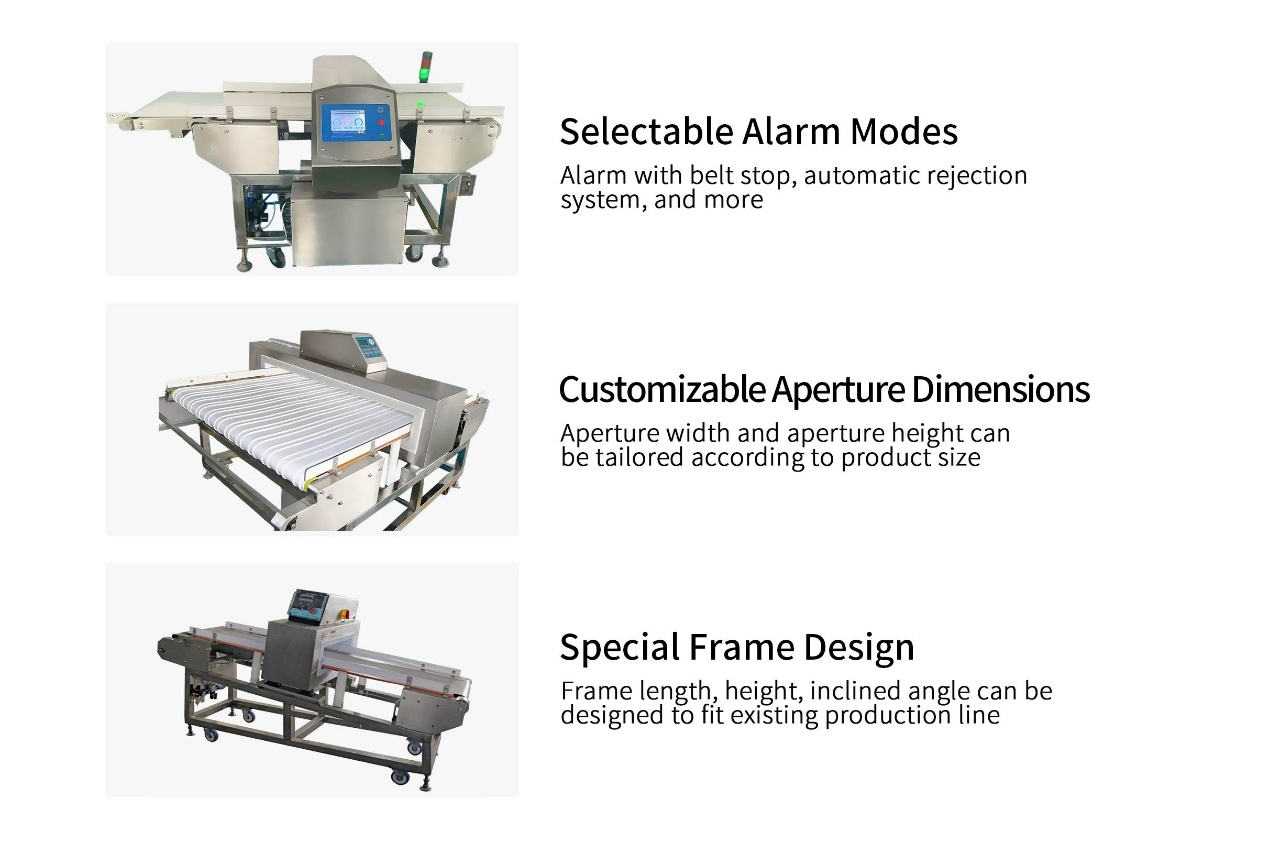

DIVERSIFIED CUSTOMIZATION AVAILABLE
Suitable for detecting metal foreign objects in aluminum foil packaging, aluminum film packaging, meat sausages with aluminum buckles, pickled products, etc.
